How to Set Up a Large Inflatable Event Tent (Step-by-Step Guide + Diagram)
Whether it's for weddings, corporate events, exhibitions, emergency gatherings, or outdoor celebrations, large inflatable event tents have become a preferred alternative to traditional frame structures. Thanks to their rapid deployment, elegant appearance, and lower labor requirements, they offer event organizers a practical and efficient shelter solution.
As a professional manufacturer of PVC inflatable tents, we often receive questions such as:
* How difficult is it to install a large inflatable banquet tent?
* How many people are needed?
* How long does the setup take?
* Are continuous-air tents different from sealed-air tents?
This guide explains the complete installation process for both continuous-air inflatable tents and sealed-air inflatable tents, helping customers understand how quickly and safely these structures can be deployed.
Why Choose Inflatable Event Tents?
Compared with conventional aluminum-frame tents, inflatable structures provide several advantages:
Faster Installation
Most commercial inflatable event tents can be installed within 30–90 minutes, depending on size.
Reduced Labor Costs
No complicated metal framework assembly is required.
Elegant Appearance
Smooth arch designs create a modern and premium atmosphere suitable for high-end events.
Easy Transportation
Deflated tents occupy significantly less storage and transportation space.
Excellent Weather Resistance
Commercial-grade PVC materials provide:
* Waterproof performance
* UV resistance
* Flame-retardant properties
* High tear strength
Understanding Two Types of Inflatable Tents
| Feature |
Continuous-Air Tent |
Sealed-Air (Airtight) Tent |
| Inflation Method |
Blower runs continuously |
Inflate once and seal |
| Typical Material Thickness |
0.55–0.60 mm PVC Vinyl |
0.90 mm PVC Vinyl |
| Internal Structure |
Air pressure maintained by blower |
Airtight drop-stitch/airtight chambers |
| Noise Level |
Low blower noise |
Silent operation |
| Setup Speed |
Very fast |
Fast |
| Power Requirement |
Continuous electricity |
Electricity only during inflation |
| Typical Applications |
Events, exhibitions, temporary venues |
Luxury events, remote locations, emergency deployment |
Tools and Equipment Required
Continuous-Air Tent
* Tent body
* Air blower(s)
* Ground tarpaulin
* Anchoring stakes
* Ropes
* Sandbags or ballast blocks
* Extension cables
* Repair kit
Sealed-Air Tent
* Tent body
* Electric air pump
* Pressure gauge
* Repair kit
* Anchoring system
* Ballast weights

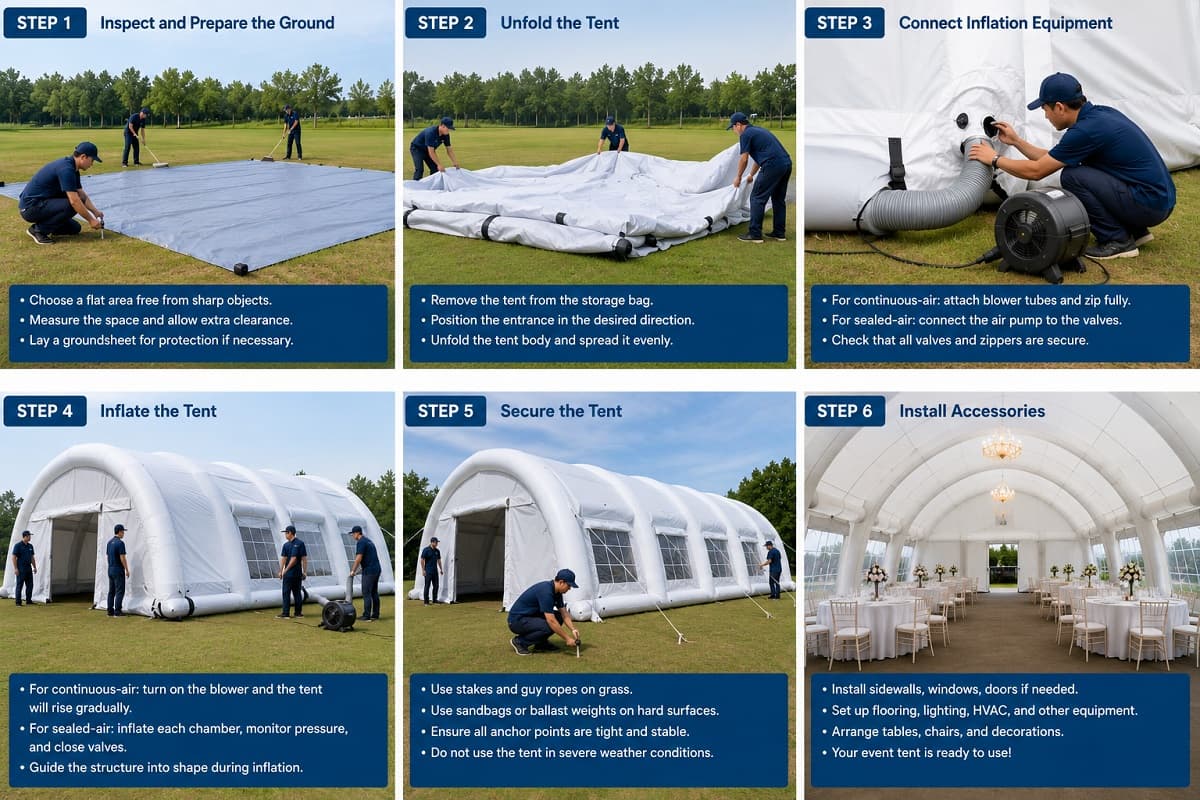

Step-by-Step Installation Guide
Step 1: Inspect and Prepare the Ground
Choose a flat area free from:
* Sharp stones
* Broken glass
* Metal debris
* Tree branches
Then:
1. Measure the available space.
2. Allow extra clearance around the tent.
3. Lay protective ground sheets if necessary.
Recommended Clearance
Maintain at least:
* 2–3 meters around smaller tents;
* 3–5 meters around large banquet tents.
Step 2: Unfold the Tent
Carefully remove the tent from its storage bag.
Installation Tips
* Position the entrance facing the intended direction.
* Confirm the orientation before inflation.
* Avoid dragging the PVC material directly across rough surfaces.
For larger tents, use several people to spread the structure evenly.
Step 3: Connect Inflation Equipment
For Continuous-Air Models
* Attach blower tubes securely.
* Ensure zipper closures are fully closed.
* Verify power supply compatibility.
For Sealed-Air Models
* Connect the air pump to the inflation valves.
* Check that pressure relief valves function correctly.
* Keep all secondary valves closed.
Step 4: Inflate the Tent
Continuous-Air Tent
* Switch on the blower.
* The structure gradually rises.
* Crew members guide the arches into position.
* Inflation generally takes 5–20 minutes.
Sealed-Air Tent
* Inflate each chamber sequentially.
* Monitor the pressure gauge.
* Close valves immediately after reaching the recommended pressure.
* Inflation usually takes 10–30 minutes.
Installation Diagram
Continuous-Air Inflatable Tent
Blower
│
▼
┌─────────────────┐
│ │
│ TENT BODY │
│ │
└─────────────────┘
▲ ▲
│ │
Stakes Stakes
│ │
Guy Ropes Guy Ropes
Sealed-Air Inflatable Tent
Air Pump
│
▼
[Inflation Valve]
│
┌─────────────────┐
│ Airtight Beams │
│ │
│ Tent Body │
│ │
└─────────────────┘
▲ ▲
│ │
Ballast Anchors
Step 5: Secure the Tent
This is one of the most critical stages.
On Grass
Use:
* Heavy-duty stakes,
* Guy ropes,
* Ground anchors.
On Concrete
Use:
* Sandbags,
* Water ballast,
* Concrete weights.
Safety Recommendations
Always follow local regulations regarding wind loading.
Commercial inflatable tents should never be operated beyond their specified wind ratings.
Step 6: Install Accessories
After the main structure is secured, install optional accessories such as:
* Sidewalls
* Transparent windows
* Doors
* Lighting systems
* Flooring
* HVAC systems
* Decorative curtains
* Audio-visual equipment
The venue is now ready for event preparation.
Typical Installation Time
| Tent Size |
Recommended Crew |
Continuous-Air Tent |
Sealed-Air Tent |
| Small (6–8 m) |
2–3 people |
15–20 min |
20–30 min |
| Medium (10–15 m) |
3–4 people |
20–40 min |
30–50 min |
| Large (15–20 m) |
4–6 people |
30–60 min |
40–70 min |
| Extra Large (20 m+) |
6–8 people |
45–90 min |
60–90 min |
Actual installation time may vary depending on site conditions and crew experience.
Important Safety Tips
* Inspect the tent before each use.
* Never install on unstable ground.
* Check weather forecasts in advance.
* Ensure all anchors are properly secured.
* Keep blower air intakes unobstructed.
* Use generators with adequate capacity if mains electricity is unavailable.
* Do not exceed the manufacturer's recommended occupancy limits.
* Deflate the structure if extreme weather conditions are expected.
Deflation and Packing
When the event concludes:
Continuous-Air Tent
1. Remove accessories.
2. Turn off the blower.
3. Open deflation zippers.
4. Allow air to escape completely.
5. Fold neatly toward the air outlets.
6. Pack into storage bags.
Sealed-Air Tent
1. Open all air valves.
2. Press remaining air out manually.
3. Fold systematically.
4. Store in a dry environment.
Proper maintenance significantly extends the service life of commercial inflatable tents.
Why Professional Inflatable Event Tents Matter
A well-designed inflatable banquet tent combines aesthetics, efficiency, and safety. Whether you choose a continuous-air structure made from 0.55–0.60 mm PVC vinyl or a sealed-air model manufactured with heavy-duty 0.90 mm PVC, professional-grade materials and engineering ensure reliable performance in demanding commercial environments.
As an experienced inflatable tent manufacturer, we provide:
* Custom sizes and layouts
* Wedding and banquet tent solutions
* Exhibition and promotional tents
* Emergency deployment shelters
* OEM and ODM manufacturing
* Global shipping support
* Technical setup guidance
Large inflatable event tents are designed to simplify installation without compromising strength or appearance—allowing organizers to focus on creating memorable events rather than managing complicated structures.
Conclusion
Setting up a large inflatable banquet tent is far easier than many first-time users expect. With proper planning, a trained crew, and the right anchoring methods, even large commercial tents can be deployed efficiently and safely in under two hours.
If you're looking for a reliable supplier of commercial inflatable event tents, choosing a manufacturer that offers quality materials, engineering expertise, and comprehensive after-sales support is the key to successful event operations.
